Ex-Proof Electric Motor SolutionsAccording to the explosion danger level and environmental conditions of the use place, choose the appropriate explosion-proof motor type, such as flameproof type, increased safety type, positive pressure type, etc.- Ex-Proof Intelligent Fire Safety SystemExplosion Proof Intelligent Fire Safety System is based on the requirements of national fire standards, combined with the Internet of Things technology, network communication fieldbus, intelligent chip and other technologies to form distributed intelligent monitoring technology, so as to achieve intelligent centralized management and control of fire equipment.
- Ex-Proof On-line Process Monitoring SystemBased on intelligent sensor network technology, the operating status of the terminal equipment is transmitted to the safety intelligent management and control platform in real time, the setting analysis and calculation, the temperature, pressure curve and other data of the equipment are predicted and analyzed, and the maintenance plan is pushed timely, so as to achieve the functions of real-time monitoring of the status, early fault discovery and processing, and realize the functions of intelligent monitoring and control.
- Ex-Proof Monitoring System SolutionsIt uses image processing, pattern recognition and computer vision technologies to add intelligent video analysis module to the monitoring system, filter out useless or interfering information in the video screen with the help of the powerful data processing power of the computer, automatically identify different objects, analyze and extract key useful information in the video source, quickly and accurately locate the accident scene, and judge the abnormal situation in the monitoring screen. And in the fastest and best way to issue an alarm or trigger other actions, so as to effectively carry out advance warning, processing in the matter, and timely evidence after the automatic, all-weather, real-time monitoring of the intelligent system.
- Ex-Proof Lighting System SolutionsExplosion Proof Lighting Management System is a lighting management control system based on Internet of Things technology, network communication, fieldbus, intelligent information processing and energy-saving electrical control technology, so as to achieve intelligent centralized management and control of lighting equipment.
- Ex-Proof Power Distribution Management SystemExplosion proof power distribution management system is based on Internet of Things technology, network communication, intelligent sensing and other technical means, to provide users with energy data collection, statistical analysis, energy efficiency analysis, energy use early warning, equipment management and other services.
- Ex-Proof HAVC SolutionsExplosion-proof HAVC refers to a Heating, Ventilation and Air Conditioning System with explosion-proof performance.
Winnex provides a full range of explosion-proof HVAC solutions, including explosion-proof air conditioners, explosion-proof fans, explosion-proof heaters etc.
The following are the specific implementation steps of the explosion proof HAVC solutions

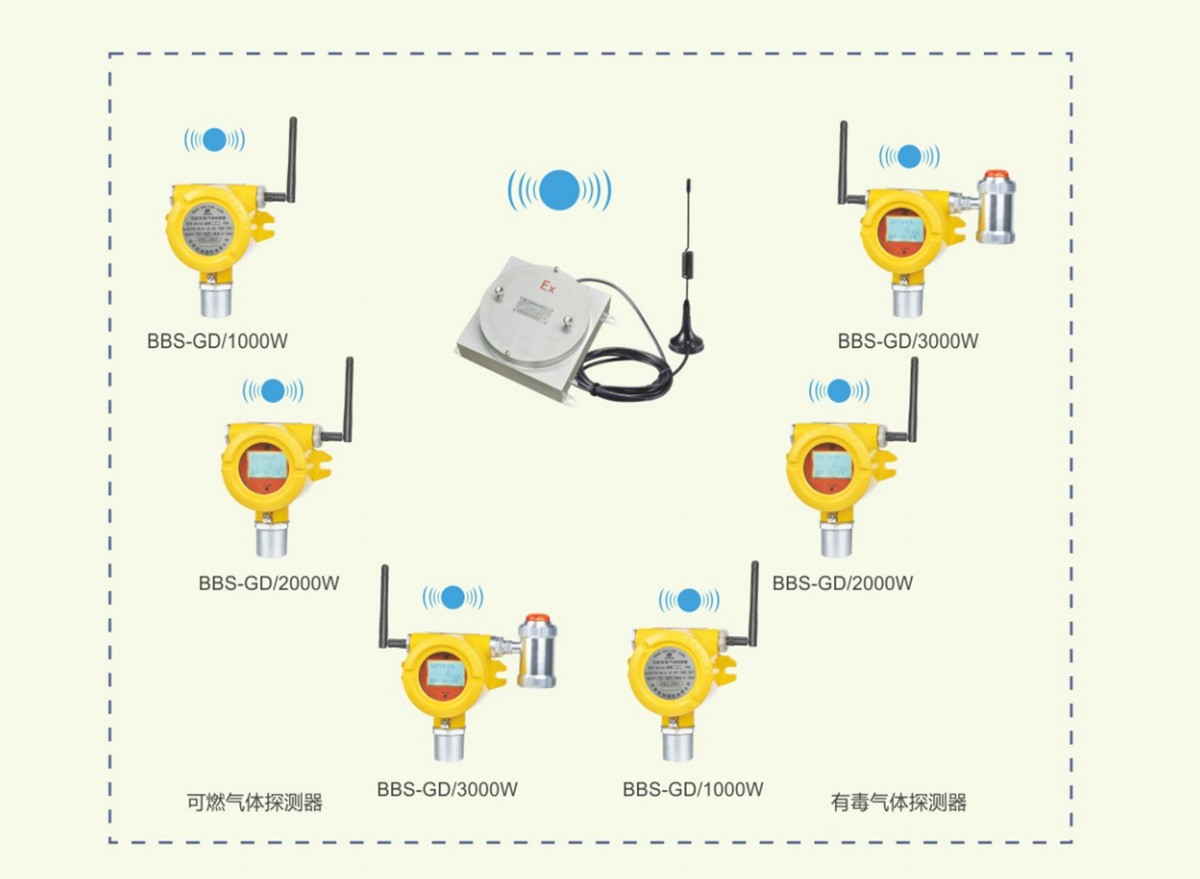

Combustible gas monitoring subsystem is the industrial intelligent management control platform. The system has the functions of real-time display and release of gas concentration at each monitoring point, and users can remotely monitor the safety situation of the plant in real time (gas concentration real-time detection data, equipment status, equipment information, etc.).
Establish vertical database, and data statistics, analysis, generate a variety of reports, curves, graphs, technical indicators.

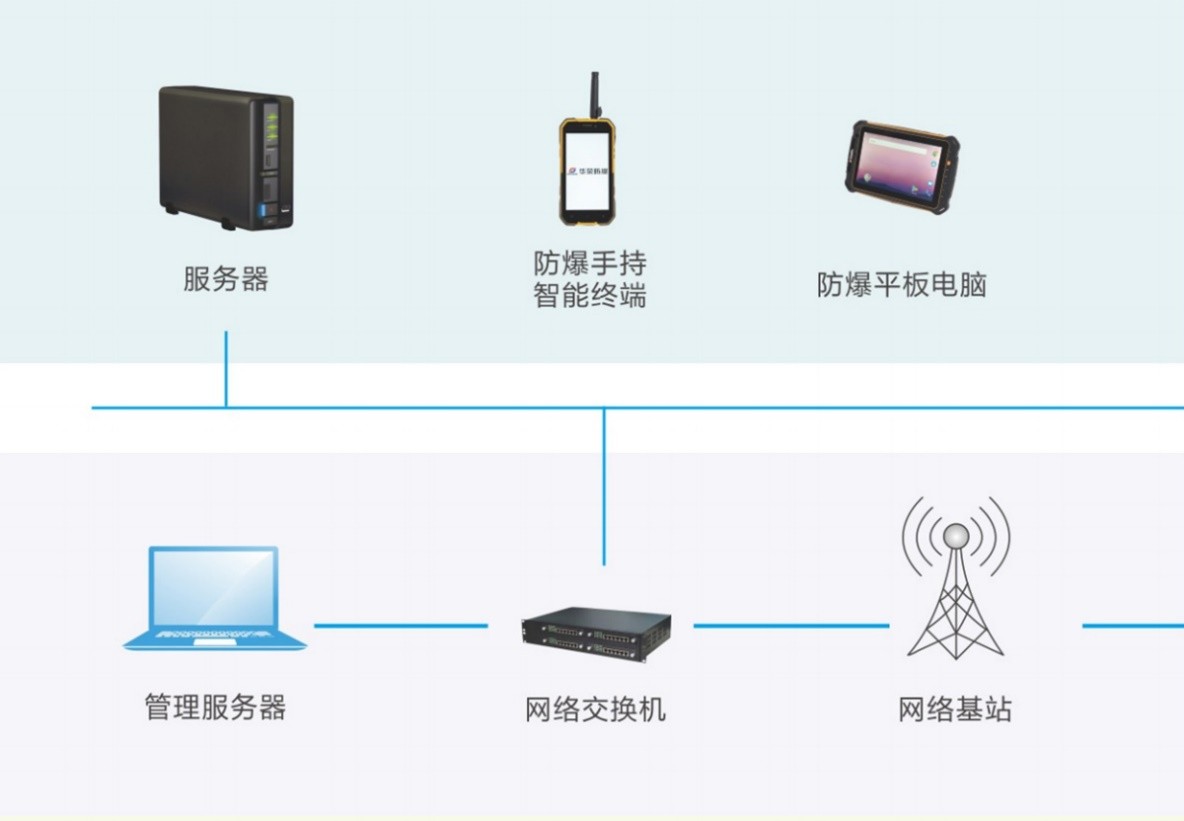

Through network cloud technology and urban networking technology, we can provide solutions for users' big data analysis, alarm visualization, geographic GRS information, rapid maintenance, etc.
The system monitors the monitoring point data in real time, such as fault or alarm, the system can send a response acoustic and optical alarm signal and output a response linkage control signal.
Can monitor EX, O2, CO, NH, SO2, H,S, NO, NO, H2, HCN, HCL, PH2, O, CLO2, COCL2, HF, CL and other unmarked gases, please call the company's technical department to communicate.
Ø System advantage
Product shell adopts die-cast aluminum technology, patented design top tightening mechanism, explosion-proof performance is reliable.
Can be connected to external fan, spray, solenoid valve and other equipment alarm linkage, can also directly connect to PLC/DCS system.
Support a variety of transmission methods: 485 analog transmission, TCP transmission, can also configure wireless modules, the use of 4G, 5G, WIF1 and other wireless network transmission, access to the system platform.
Ø System Capacity
The system can be multi-node wireless networking, point-to-multipoint wireless networking. In theory, the same receiver can receive the transmission data of 255 wireless transmitters, but in fact, it depends on the data transmission interval of the field and the wireless transmitter.
